IP based TCCS
Request for More Info.
Certified by RDSO (Research Design and Standard Organization)

VoIP based Train Control Communications
Systems (TCCS) for Indian Railway

IP based TCCS
REQUEST FOR QUOTE
Certified by RDSO (Research Design and Standard Organization)

VoIP based Train Control Communications
Systems (TCCS) for Indian Railway

VoIP Based Train Control Communication System - A modern IP-based communication solution designed for reliable and centralized communication between Section Controllers, Station Masters and other authorized railway users. TCCS provides individual, group and general communication across the control section, with centralized conferencing, emergency communication, call recording and system monitoring capabilities. IP based Train Control Communication System surpasses the existing legacy system of Analog devices and allows the controllers office to work with touch screen console. Way stations can communicate on conference using advanced phone terminals over a modern IP infrastructure with recording capabilities as per RDSO guidelines. The VoIP based TCCS seamlessly integrates with any modern communication system as well as legacy analog systems. It is a future ready solution which can easily be used with any other IP based voice / data/ video applications.

VoIP based Train Control Communications Systems

Features of TCCS

  • VoIP/IP-Based Train Control Communication.
  • Designed and implemented in accordance with applicable RDSO TCCS requirements.
  • Centralized Conference Communication.
  • Direct communication with Way-Side Stations.
  • Controller-based Mute / Unmute / Disconnect.
  • Real-time Call & Subscriber Status.
  • Emergency Communication from track-side locations.
  • Centralized Voice Recording & Playback.
  • Call History & Call Data Records.
  • Centralized Network Management & Monitoring.
  • Fault & Alarm Notification.
  • Integrates seamlessly with existing systemsand Omnibus analog communication circuit.
  • Easy migration to future technologies to IPV6.
  • Unified infrastructure for Data, Voice and Video Communication with Packet based IP Technology.
  • Visual indication of station status in use, busy or connected.
  • Centralised Communication and application server for call control / conferencing.
  • Provision for disaster recovery server
  • TCCS - Implemented VOIP Phone Based Calling, Analogue Calling, and Supporting GSM Calling to avoid any Station Blackout situation.

Features

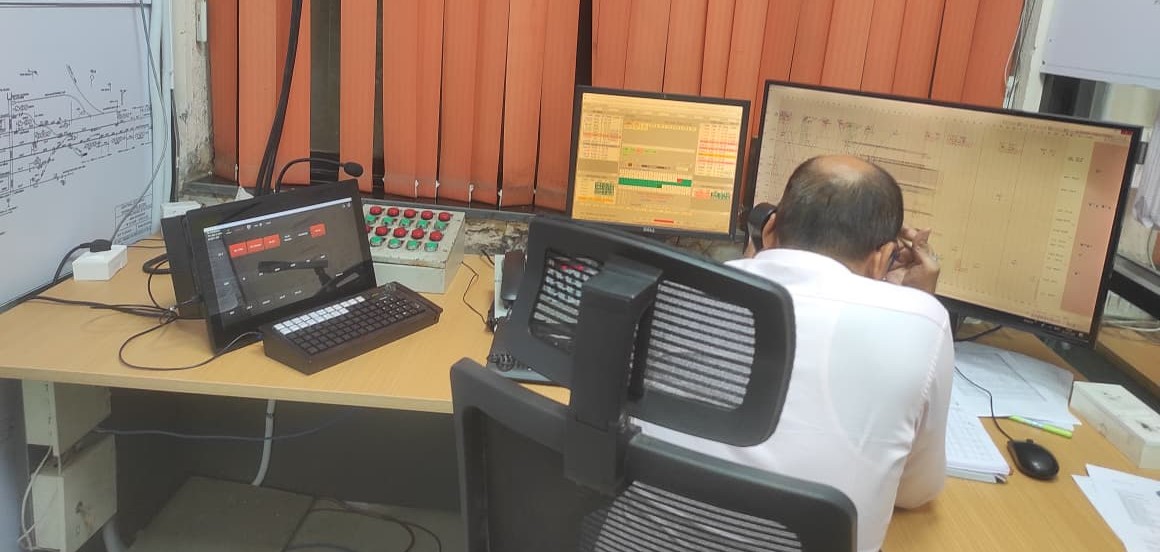

For controller on his console

For station master on his phone
  • Call any station individually.
  • Single Touch click call /disconnect and mute functionality.
  • Make Group Calls to selected stations.
  • View connected participants and call status.
  • Mute / Unmute individual participants.
  • Status of way station phone indication like Busy, Free and Not Reachable in Multi Color Mode on Controller Console.
  • View call history and subscriber directory.
  • Selective call, Group call, conference call functional on controller console.
  • Multiple group creation, Call history features.
  • Customized Touch Screen based PC inegrated as Single unit, Microphone and Speaker.
  • Unified Graphical User Interface (GUI) for section controller, Emergency Controller and other Controllers.
  • Controller can easily identified call connected channels, like communication can done through IP Phones, Analogue Phones, GSM Calls so failure channels can easily identified.
  • Lift & Listen – lifting the handset connects the station to the respective controller.
  • Use Push-to-Talk when required.
  • Communicate directly with the Section Controller.
  • Receive calls from the Controller.
  • View caller information on IP telephone, where supported.
  • View received, outgoing and missed call history.
  • Participate in control conference as permitted.
  • Emergency communication through designated emergency communication points.
  • Single equipment for all controls for both incoming and outgoing calls.
  • Provision of Hotline features to communicate with Side-by-Side Station.
  • Distinct incoming call ring for incoming from section controller to alert the ASM even when he is busy, or not looking at the telephone screen.
  • ASM shall get incoming call alert from the section controller even if he is talking to some other subscriber or when the phone handset is not re-placed properly on the cradle.
  • Features like caller ID, call log, missed calls etc. are provided.
  • Shortcut dialing buttons for dialing various controllers including section controller are provided.
  • Easy replacement of IP Phones during failure with auto provisioning.
  • Video call facility is optimal with video phones.

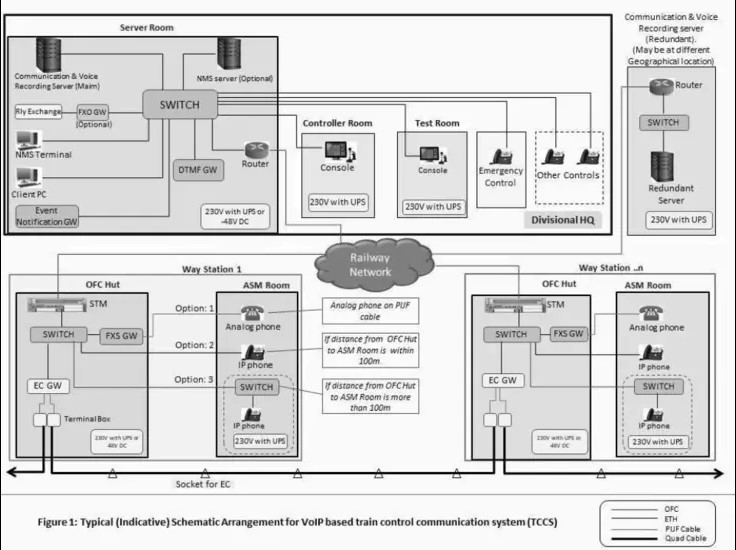

Architecture

VoIP based Train Control Communications Systems
